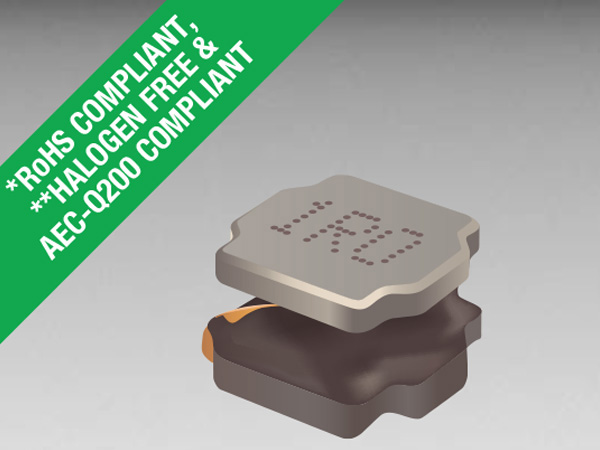

Bourns伯恩斯電感器SRN6045TA系列
Bourns伯恩斯SRN6045TA系列電感器主要材料為鐵氧體鐵芯，漆包銅電線，Sn端子表面處理，磁性環(huán)氧樹脂涂層
- 品牌： Bourns/伯恩斯
- 分類： 貼片電感器
- 最大電壓： -
- 額定電流： -
Part No. | Inductance 1kHz | Q | SRF Typ. | DCR Max. | I rms Typ. | I sat Typ. | |
(μH) | Tol. % | Ref. | (MHz) | （mΩ）±20% | (A) | （A） | |
SRN6045TA-1R0Y | 1.0 | ±30 | 15 | 110 | 10 | 8.00 | 13.5 |
SRN6045TA-1R2Y | 1.2 | ±30 | 15 | 90 | 10.5 | 7.50 | 12.5 |
SRN6045TA-1R5Y | 1.5 | ±30 | 15 | 75 | 11.7 | 7.00 | 12.0 |
SRN6045TA-2R2Y | 2.2 | ±30 | 15 | 55 | 15 | 6.00 | 9.50 |
SRN6045TA-3R3Y | 3.3 | ±30 | 15 | 45 | 21 | 5.00 | 7.80 |
SRN6045TA-3R6Y | 3.6 | ±30 | 15 | 42 | 22.5 | 4.90 | 7.40 |
SRN6045TA-4R7M | 4.7 | ±20 | 15 | 40 | 26 | 4.50 | 6.80 |
SRN6045TA-6R3M | 6.3 | ±20 | 15 | 35 | 33 | 3.80 | 5.90 |
SRN6045TA-6R8M | 6.8 | ±20 | 15 | 30 | 34 | 3.60 | 5.70 |
SRN6045TA-8R2M | 8.2 | ±20 | 15 | 27 | 46 | 3.40 | 5.10 |
SRN6045TA-100M | 10 | ±20 | 15 | 25 | 52 | 3.20 | 4.60 |
SRN6045TA-120M | 12 | ±20 | 15 | 22 | 65 | 3.00 | 4.00 |
SRN6045TA-150M | 15 | ±20 | 15 | 20 | 71 | 2.80 | 3.80 |
SRN6045TA-220M | 22 | ±20 | 15 | 17 | 96 | 2.30 | 3.30 |
SRN6045TA-330M | 33 | ±20 | 15 | 13 | 145 | 1.80 | 2.50 |
SRN6045TA-470M | 47 | ±20 | 15 | 12 | 200 | 1.60 | 2.00 |
SRN6045TA-560M | 56 | ±20 | 15 | 11 | 230 | 1.40 | 1.80 |
SRN6045TA-680M | 68 | ±20 | 15 | 10 | 305 | 1.10 | 1.60 |
SRN6045TA-820M | 82 | ±20 | 15 | 9 | 365 | 0.98 | 1.50 |
SRN6045TA-101M | 100 | ±20 | 15 | 8.5 | 456 | 0.92 | 1.33 |
SRN6045TA-121M | 120 | ±20 | 15 | 7 | 500 | 0.85 | 1.20 |
SRN6045TA-151M | 150 | ±20 | 15 | 6.5 | 626 | 0.75 | 1.10 |
SRN6045TA-181M | 180 | ±20 | 15 | 6 | 745 | 0.68 | 1.00 |
SRN6045TA-221M | 220 | ±20 | 15 | 5 | 900 | 0.60 | 0.88 |
SRN6045TA-331K | 330 | ±10 | 15 | 4 | 1400 | 0.55 | 0.60 |
SRN6045TA-471K | 470 | ±10 | 15 | 3 | 2050 | 0.40 | 0.50 |
