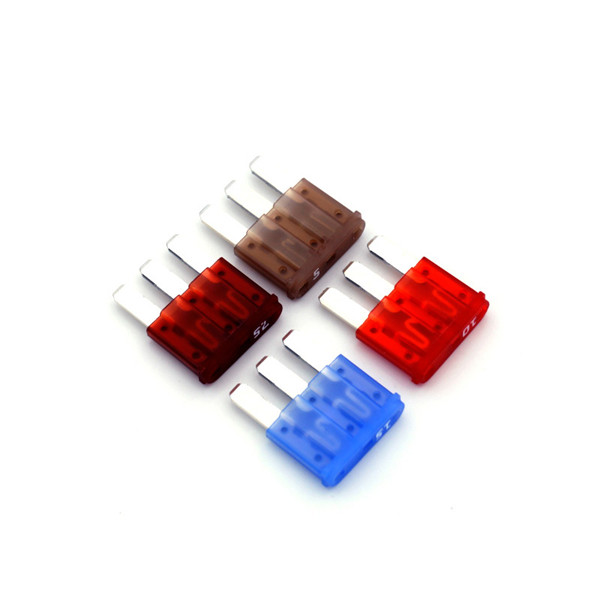

The MICRO3TM Fuse is the new standard for vehicle circuit protection. The MICRO3TM Fuse has 3 terminals and 2 fuse elements with a common center terminal. Its sub-miniature design meets the need for more circuits to be protected while utilizing less space and its ability to cope with high temperatures in adverse environments makes the MICRO3TM Fuse the recommended choice for protection.
Voltage Rating: 1000A @ 32 VDC
| Part Number | Current Rating (A) | Test. Cable Size(mm2) | Typ. Voltage Drop(mV) | Typ. Cold Resistance (mΩ) | Typ.I2t(A2s) | |
| Size Fuse Blades | Center Fuse Blades | |||||
| 0337003._ | 3 | 0.5 | 1 | 113 | 31.7 | 9 |
| 0337005._ | 5 | 0.5 | 1 | 116 | 17.4 | 17 |
| 033707.5_ | 7.5 | 0.75 | 1.5 | 106 | 10.8 | 47 |
| 0337010._ | 10 | 1 | 2.5 | 102 | 7.7 | 89 |
| 0337015._ | 15 | 1.5 | 4 | 94 | 4.9 | 189 |
