The MINI? Fuse is quickly becoming the new standard for vehicle circuit protection throughout the world. Its miniature design, patented by Littelfuse, meets the need for more circuits to be protected while utilizing less space, and its ability to cope with high temperatures in adverse environments makes the MINI? Fuse the recommended choice for protection.
Interrupting Rating:1000A @ 32 VDC
| Part Number | Current Rating (A) | Typ. Voltage Drop(mV) | Cold Resistance (mΩ) | I2t(A2s) |
| 0297002._ | 2 | 171 | 55.60 | 2.8 |
| 0297003._ | 3 | 153 | 33.75 | 9.4 |
| 0297004._ | 4 | 121 | 23.48 | 17 |
| 0297005._ | 5 | 129 | 17.75 | 25 |
| 029707.5_ | 7.5 | 135 | 10.85 | 68 |

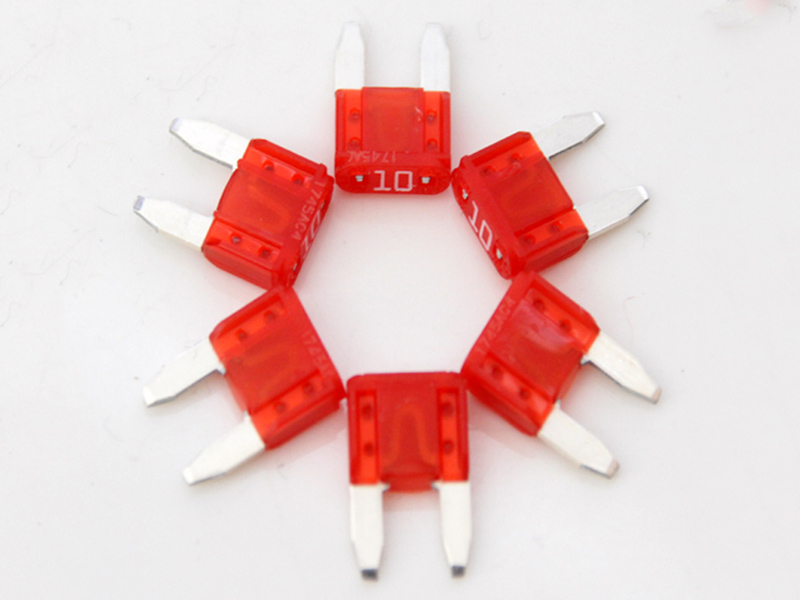

| 0297010_ | 10 | 108 | 7.42 | 93 |

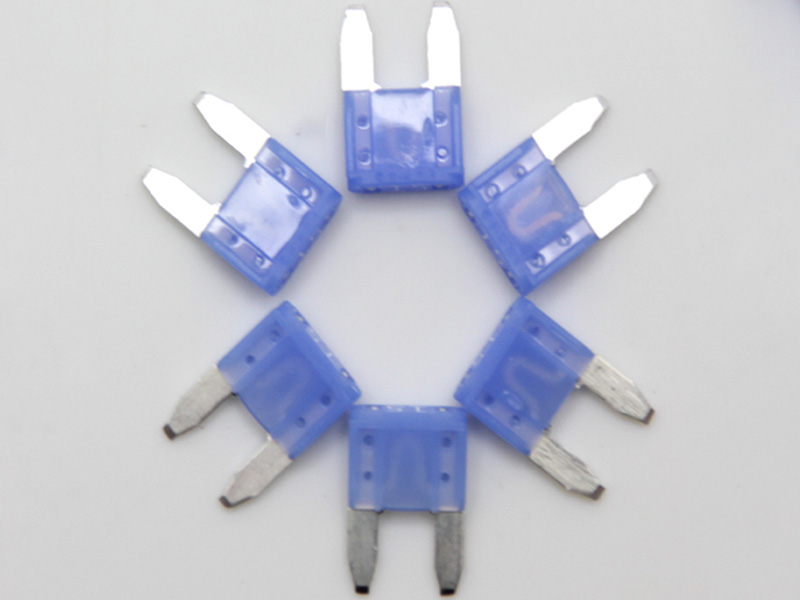

| 0297015._ | 15 | 98 | 4.58 | 270 |

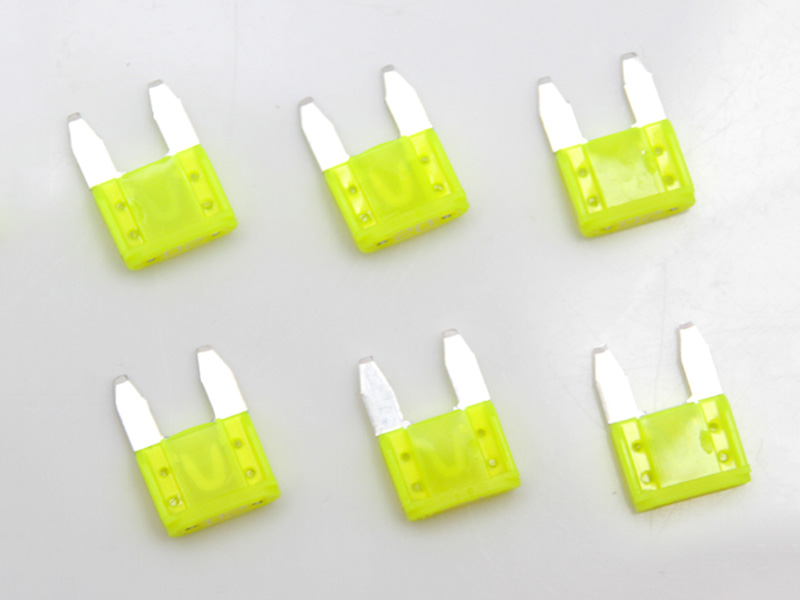

| 0297020._ | 20 | 96 | 3.21 | 380 |
| 0297025._ | 25 | 86 | 2.36 | 625 |

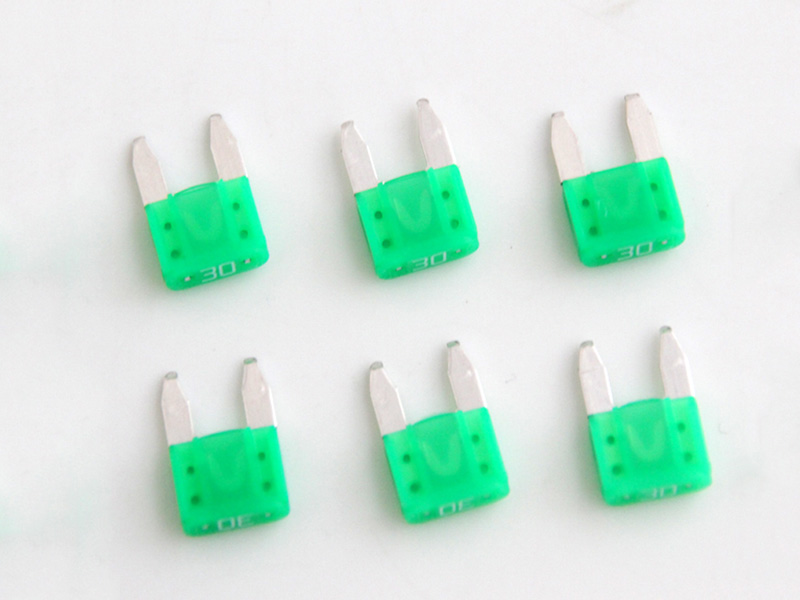

| 0297030._ | 30 | 87 | 1.85 | 1100 |
