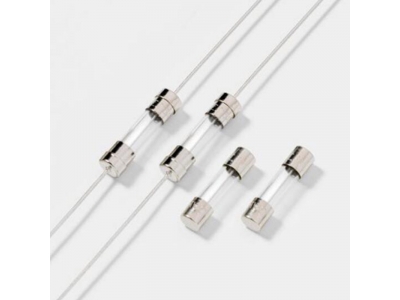

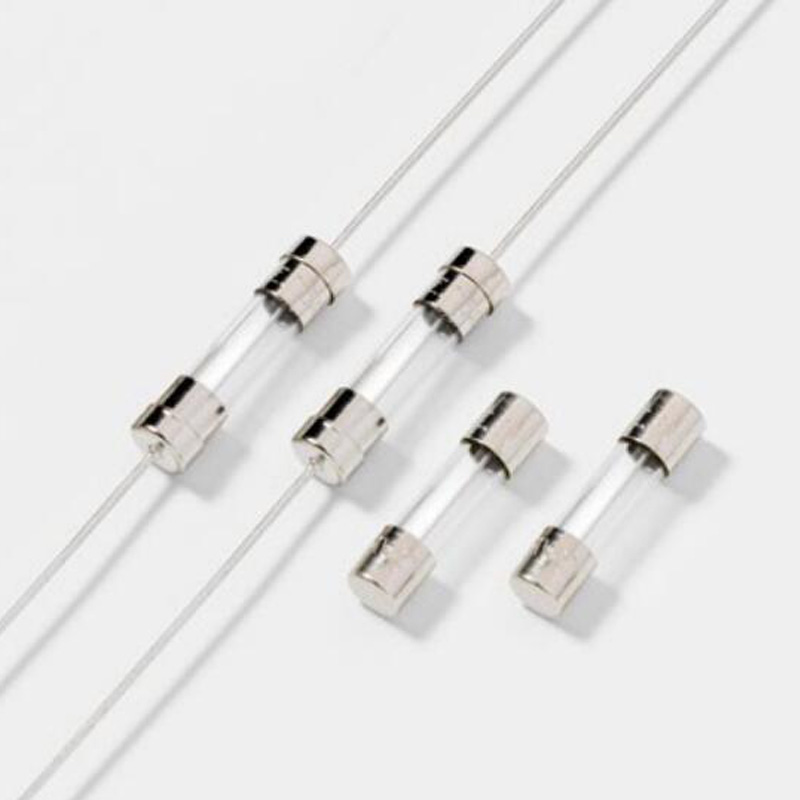

218 Series Time-Lag Fuse
The 218 series fuse is a 5x20mm time-lag glass body cartridge fuse designed to IEC specification.
- Brand： Littelfuse
- Classification： Glass Fuses
- Voltage： 250V
- Current： 0.032A-16A
Description:
The 218 series fuse is a 5x20mm time-lag glass body cartridge fuse designed to IEC specification.
Features：
? Designed to International IEC Standards for use globally
? Meets the IEC 60127-2, Sheet 3 specification for Time-Lag fuses

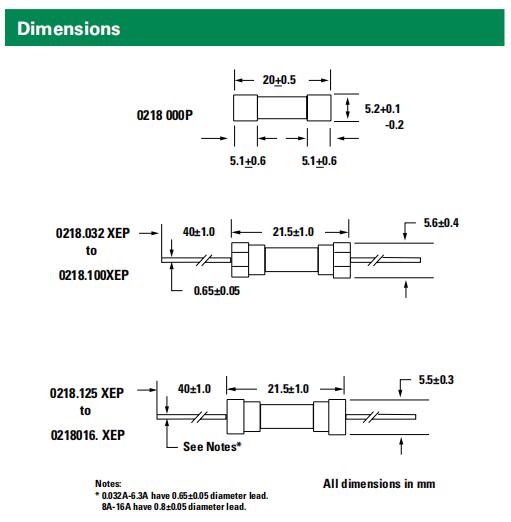

? Available in cartridge and axial lead form
? RoHS compliant and lead-free
Applications：
Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
AmpCode | Amp Rating (A) | Voltage Rating (V) | Interrupting Rating | Nominal Cold Resistance(Ohms) | Nominal Melting I2t (A2sec) | Maximum Voltage Drop at Rated Current(mV) | Maximum Power Dissipation At 1.5In(W) |
.032 | 0.032 | 250 | 35A@250VAC | 48.2580 | 0.01100 | 5000 | 1.6 |
.040 | 0.04 | 250 | 31.8621 | 0.01100 | 4000 | 1.6 | |
.050 | 0.05 | 250 | 21.2920 | 0.02700 | 3500 | 1.6 | |
.063 | 0.063 | 250 | 14.2680 | 0.04600 | 3000 | 1.6 | |
.080 | 0.08 | 250 | 9.0700 | 0.07500 | 2500 | 1.6 | |
.100 | 0.1 | 250 | 6.0180 | 0.07900 | 2000 | 1.6 | |
.125 | 0.125 | 250 | 4.2000 | 0.1465 | 1900 | 1.6 | |
.160 | 0.16 | 250 | 3.7000 | 0.14400 | 1500 | 1.6 | |
.200 | 0.2 | 250 | 1.6000 | 0.3410 | 1300 | 1.6 | |
.250 | 0.25 | 250 | 1.0495 | 0.5405 | 1100 | 1.6 | |
.315 | 0.315 | 250 | 0.8475 | 1.1100 | 1000 | 1.6 | |
.400 | 0.4 | 250 | 0.5350 | 1.3250 | 900 | 1.6 | |
.500 | 0.5 | 250 | 0.3700 | 2.8250 | 300 | 1.6 | |
.630 | 0.63 | 250 | 0.2750 | 4.6750 | 250 | 1.6 | |
.800 | 0.8 | 250 | 0.0813 | 3.370 | 150 | 1.6 | |
001. | 1 | 250 | 0.0613 | 6.730 | 150 | 1.6 | |
1.25 | 1.25 | 250 | 0.0446 | 12.650 | 150 | 1.6 | |
01.6 | 1.6 | 250 | 0.0336 | 23.350 | 150 | 1.6 | |
002. | 2 | 250 | 0.0293 | 14.450 | 150 | 1.6 | |
02.5 | 2.5 | 250 | 0.0219 | 23.250 | 120 | 1.6 | |
3.15 | 3.15 | 250 | 0.0173 | 38.150 | 100 | 1.6 | |
004. | 4 | 250 | 40A@250VAC | 0.0129 | 69.10 | 100 | 1.6 |
005. | 5 | 250 | 50A@250VAC | 0.0104 | 111.00 | 100 | 1.6 |
06.3 | 6.3 | 250 | 63A@250VAC | 0.0076 | 198.50 | 100 | 1.6 |
008. | 8 | 250 | 80A@250VAC | 0.0059 | 341.50 | 100 | 4 |
010. | 10 | 250 | 100A@250VAC | 0.0045 | 568.00 | 100 | 4 |
12.5 | 12.5 | 250 | 63A@250VAC | 0.0034 | 889.00 | 100 | 4 |
015. | 15 | 250 | 100A@250VAC | 0.0028 | 1405.00 | 100 | 4 |
016. | 16 | 250 | 63A@250VAC | 0.0021 | 1955.00 | 100 | 4 |
