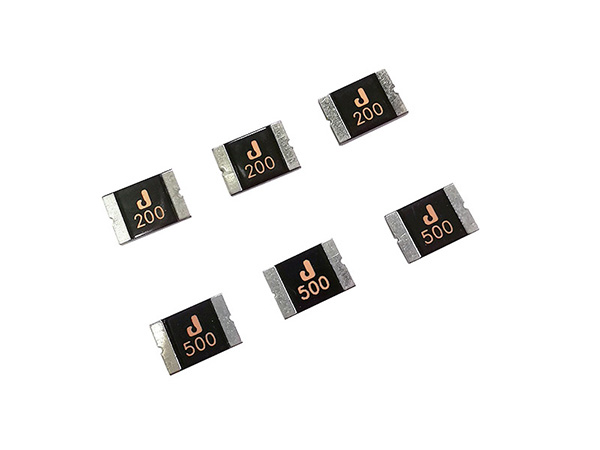

ASMD2920 PPTC Resettable Fuse

The ASMD2920 series provides surface mount
resettable overcurrent protection with holding current from 0.3A to 7.0A.
This series is suitable for applications with higher holding current and higher working voltage up to 60V.

  • Brand： JDT FUSE
  • Classification： SMD PTC
  • Voltage： 6V-60V
  • Current： 0.3A-3A

Electrical properties


Part No.
Vmax
(Vdc)
Imax
(A)
Ihold
@25℃
(A)
Itrip
@25℃
(A)
Pd
(W)
Maximum Time
To Trip
Resistance
Current
(A)
Time
(Sec.)
Rimin
(Ω)
R1max
(Ω)
ASMD2920-030
60
100
0.30
0.60
1.5
1.5
3.0
0.600
4.800
ASMD2920-050
60
100
0.50
1.00
1.5
2.5
4.0
0.180
1.400
ASMD2920-075
33
100
0.75
1.50
1.5
8.0
0.3
0.100
1.000
ASMD2920-075-60V
60
100
0.75
1.50
1.5
8.0
0.3
0.100
1.000
ASMD2920-100
33
100
1.00
2.00
1.5
8.0
0.5
0.065
0.410
ASMD2920-100 -60V
60
100
1.00
2.00
1.5
8.0
0.5
0.065
0.410
ASMD2920-125
33
100
1.25
2.50
1.5
8.0
2.0
0.050
0.250
ASMD2920-150
33
100
1.50
3.00
1.5
8.0
2.0
0.035
0.230
ASMD2920-185
33
100
1.85
3.70
1.5
8.0
2.5
0.030
0.150
ASMD2920-200
16
100
2.00
4.00
1.5
8.0
4.5
0.020
0.120
ASMD2920-200-24V
24
100
2.00
4.00
1.5
8.0
4.5
0.020
0.120
ASMD2920-200-33V
33
100
2.00
4.00
1.5
8.0
4.5
0.020
0.120
ASMD2920-250
16
100
2.50
5.00
1.5
8.0
16.0
0.020
0.085
ASMD2920-250-24V
24
100
2.50
5.00
1.5
8.0
16.0
0.020
0.085
ASMD2920-260
6
100
2.60
5.20
1.5
8.0
10.0
0.014
0.075
ASMD2920-260-16V
16
100
2.60
5.20
1.5
8.0
10.0
0.014
0.075
ASMD2920-300
6
40
3.00
6.00
1.5
8.0
20.0
0.012
0.048
ASMD2920-300-16V
16
40
3.00
6.00
1.5
8.0
20.0
0.012
0.048
ASMD2920-300-30V
30
40
3.00
6.00
1.5
8.0
20.0
0.012
0.048
ASMD2920-400
16
40
4.00
8.00
1.5
20.0
4.0
0.008
0.040
ASMD2920-400-6V
6
40
4.00
8.00
1.5
20.0
4.0
0.008
0.040
ASMD2920-400-24V
24
40
4.00
8.00
1.5
20.0
4.0
0.008
0.040
ASMD2920-500
6
40
5.00
10.00
1.5
25.0
5.0
0.005
0.031
ASMD2920-500-12V
12
40
5.00
10.00
1.5
25.0
5.0
0.005
0.031
ASMD2920-500-16V
16
40
5.00
10.00
1.5
25.0
5.0
0.005
0.031
ASMD2920-600
6
40
6.00
12.00
1.5
25.0
6.0
0.004
0.020
ASMD2920-600-12V
12
40
6.00
12.00
1.5
25.0
6.0
0.004
0.020
ASMD2920-700
6
40
7.00
14.00
1.5
25.0
6.0
0.0025
0.010
ASMD2920-700-12V
12
40
7.00
14.00
1.5
25.0
6.0
0.0025
0.010


JDTFUSE

Model
A
B
C
D
E
Min.
Max.
Min.
Max.
Min.
Max.
Min.
Min.
ASMD2920-030
6.73
7.98
4.8
5.44
0.6
1.2
0.3
0.25
ASMD2920-050
6.73
7.98
4.8
5.44
0.6
1.2
0.3
0.25
ASMD2920-075
6.73
7.98
4.8
5.44
0.6
1.3
0.3
0.25
ASMD2920-100
6.73
7.98
4.8
5.44
0.4
1.0
0.3
0.25
ASMD2920-100-60V
6.73
7.98
4.8
5.44
1.0
2.1
0.3
0.25
ASMD2920-125
6.73
7.98
4.8
5.44
0.4
1.0
0.3
0.25
ASMD2920-150
6.73
7.98
4.8
5.44
0.5
1.3
0.3
0.25
ASMD2920-185
6.73
7.98
4.8
5.44
0.6
1.4
0.3
0.25
ASMD2920-200
6.73
7.98
4.8
5.44
0.6
1.4
0.3
0.25
ASMD2920-250
6.73
7.98
4.8
5.44
0.6
1.4
0.3
0.25
ASMD2920-260
6.73
7.98
4.8
5.44
0.6
1.4
0.3
0.25
ASMD2920-300
6.73
7.98
4.8
5.44
0.6
1.2
0.3
0.25
ASMD2920-400
6.73
7.98
4.8
5.44
0.6
1.6
0.3
0.25
ASMD2920-500
6.73
7.98
4.8
5.44
0.6
1.6
0.3
0.25
ASMD2920-600
6.73
7.98
4.8
5.44
0.6
1.6
0.3
0.25
ASMD2920-700
6.73
7.98
4.8
5.44
0.6
1.6
0.3
0.25


JDTFUSEREACH

JDTFUSERoHS

JDTFUSEUL
